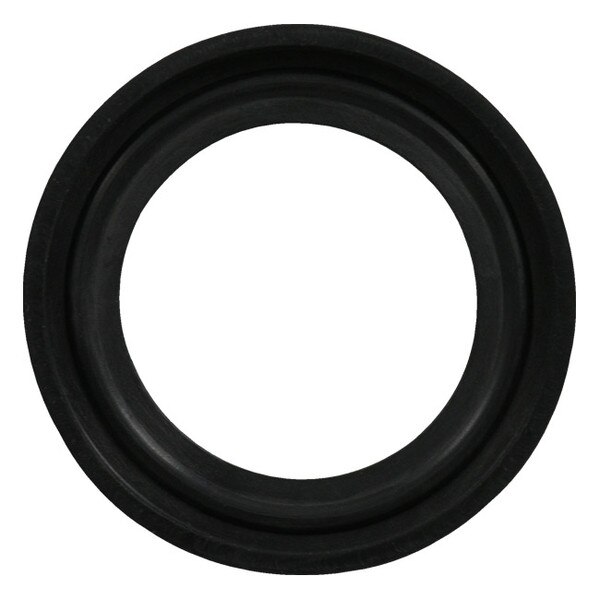

Q-Line Gaskets - EPDM
Note: These gaskets are available as Metal Detectable/X-Rayable Detectomers®, contact for pricing and availability.
Black EPDM Sanitary Q-Line Gaskets are specified by many process equipment manufacturers and are generally suitable for these applications, however service life must be considered and a preventative maintenance program must be in place to mitigate degradation. EPDM Gaskets are generally only suitable for low pressure steam between -30°F and 300°F. EPDM is a good choice for Tri-Clamp® Gaskets when an economical solution for weather and chemical resistant seals is desired. Chemically, EPDM has good resistance to animal oils, vegetable oils, ozone, strong chemicals, and oxidizing chemicals. Do not use EPDM gaskets for mineral oils, solvents, or aromatic hydrocarbons.
Storing EPDM Gaskets:
- Shelf Life: 10 Years from cure date
- Store in original packaging in clean and dry warehouse
- Do not expose to direct sunlight
- Keep more than 6' away from electric motors
- Maintain temperature between 65°F and 85°F
- FDA CFR 21, 177.2600
- U.S. Pharmacopeia Class VI Certification
- USDA Hazard Analysis and Critical Control Points
- Cytotoxicity Criteria
- USDA and 3-A Sanitary Standards
- ADI Free® (Animal Derived Ingredient Free)
- Current Good Manufacturing Practices (CGMP)
- Color Code: three green dots • • •
- -30°F to 300°F Temperature Range
- Acceptable for low pressure steam applications
- Peroxide cured
- Type I and II Tri-Clamp® Gasket
- Screen Gaskets
- Sock Gaskets
- Orifice Plate Gaskets
- Gauge Guards
- O-Rings
- Mini Steam Trap Orifice Plates
- ANSI 150# Flange Gasket
- ANSI 300# Flange Gasket
- Bevel Seat Gaskets
- APC Gaskets
- John Perry Gaskets
- I-Line Gaskets
- DIN/ISO
- X-Ray Detectable
- Sheets
- Custom Gaskets, Profiles, Cord, Scrapers
| 1 = Excellent 2 = Good 3 = Acceptable 4 = Marginal 5 = Poor 6 = Do Not Use | ||||||||
|---|---|---|---|---|---|---|---|---|
| Material | Cont. Steam | Inter. Steam | Pure Water Ambient | Pure Water Hot | Process Fluids Ambient | Process Fluids Hot | Process Fluid Variables 0°-100°C | Temperature Range |
| Tuf-Steel® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -350°-550°F |
| Tuf-Flex® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -20°-300°F |
| Food-Flex® | 1 | 1 | 1 | 1 | 1 | 1 | 1 | -30°-250°F |
| PTFE | 1 | 1 | 1 | 1 | 1 | 1 | 3 | -100° to 500°F |
| Silicone (platinum) | 2 | 2 | 2 | 2 | 2 | 2 | 1 | -40°-450°F |
| Silicone (peroxide) | 2 | 2 | 2 | 2 | 2 | 2 | 1 | -40°-450°F |
| FKM | 3 | 2 | 2 | 2 | 2 | 2 | 2 | -30°-400°F |
| EPDM (peroxide) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | -30°-300°F |
| Buna | 0 | 0 | 5 | 5 | 5 | 5 | 5 | -30°-200°F |

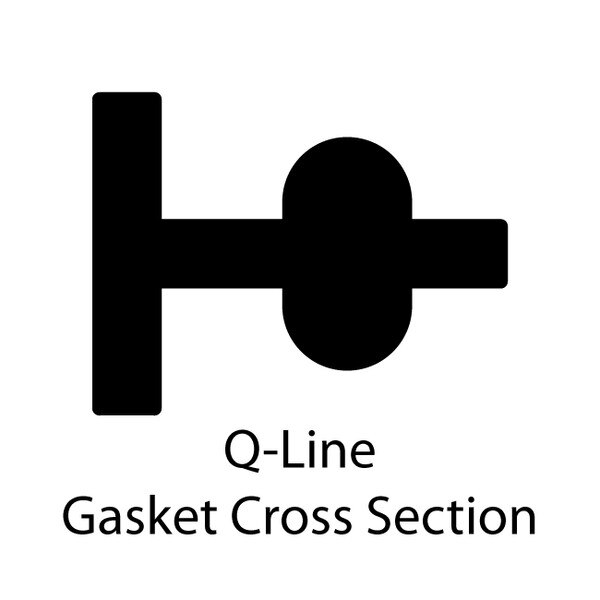

Q-Line Gasket Sizing | |||
| Size | Inside Diameter | Outer Diameter | Bead Diameter |
|---|---|---|---|
| 1" | 0.90" (22.86mm) | 2.09" (53.09mm) | 1.44" (36.58mm) |
| 1-1/2" | 1.40" (35.56mm) | 2.12" (53.85mm) | 1.70" (43.18mm) |
| 2" | 1.89" (48.01mm) | 2.77" (70.36mm) | 2.25" (57.15mm) |
| 2-1/2" | 2.37" (60.20mm) | 3.46" (87.88mm) | 2.85" (72.39mm) |
| 3" | 2.87" (72.90mm) | 4.00" (101.60mm) | 3.37" (85.60mm) |
| 4" | 3.87" (98.30mm) | 5.00" (127.00mm) | 4.40" (111.76mm) |
