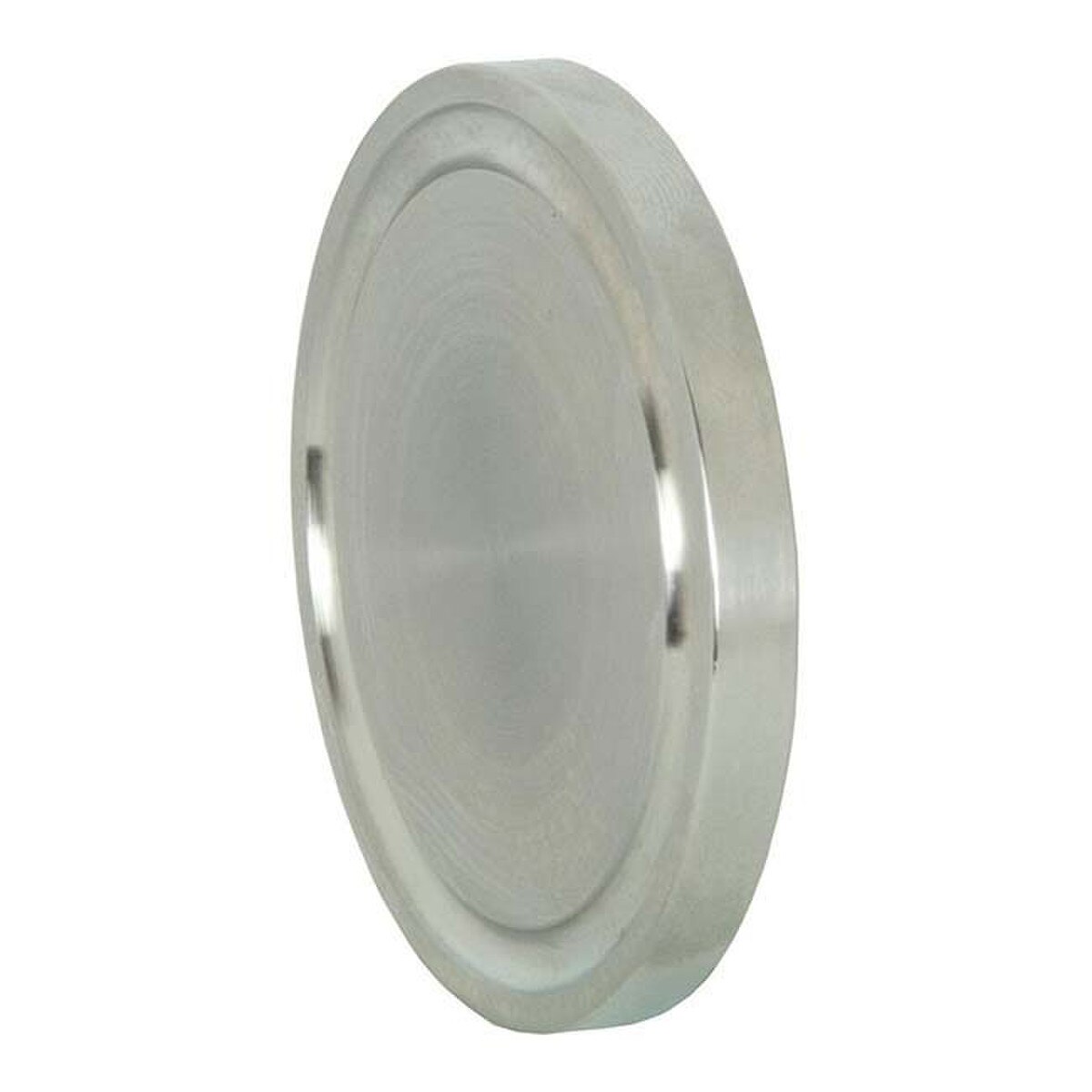

Q-Line Solid End Caps
Dixon Sanitary offers a variety of Q-Line fittings in 304 and 316L materials with sizes from 1" to 4". If you don't find what you need just contact us and we can likely get it for you.
Dixon™ Fittings have earned and maintain the 3A standard, which requires an annual evaluation of each product. This standard was collaboratively developed by a group of processors, suppliers, regulatory officials and sanitation specialists and is recognized by the USDA and the USFDA as well as many other authorities. Dixon™ Sanitary Fittings meet the 3A Standards for milk and milk products, #63-03 (Authorization Number 621).
Part Number | Tube OD | A | Material |
---|---|---|---|
16AQ-G100 | 1" | .313 | 304 Stainless |
16AQ-G150 | 1 1/2" | .313 | 304 Stainless |
16AQ-G200 | 2" | .438 | 304 Stainless |
16AQ-G250 | 2 1/2" | .500 | 304 Stainless |
16AQ-G300 | 3" | .500 | 304 Stainless |
16AQ-G400 | 4" | .625 | 304 Stainless |
